Solutions for the Cabling Industry

Features & Benefits

Posi-Stop™
Provides a positive stop for the duct during installation.
Ensures equal engagement of the duct and coupler on both sides of the connection.

Seal-Land™ & Modi-Thread™
The Seal-Land™ provides a smooth interference land area for improved seal.
The Modi-Thread™ ensures high pull strength.

Optional O-Ring Seals


Couplers & Reducers

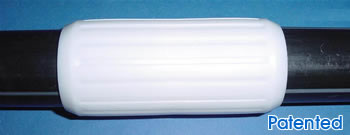

One Piece SealLock™ Coupler

When ® introduced the revolutionary SealLock™ coupler, an industry was transformed. ® was the first to introduce an all plastic duct coupler with many added benefits that addressed problematic issues that the industry had faced for a longtime.

The SealLock™ coupler is manufactured from a proprietary high modulus polymer that provides a durable, corrosion resistant connection under the most severe conditions. The low profile allows the SealLock™ to pass through plow chutes unhindered and it's high pull strength ensure an intact joint.

This reverse threaded coupler can be installed by two methods, Pressing or Threading. Pressing is preferred because the duct is forced hydraulically to the Posi-Stop™ providing consistency of installation.

The standard SealLock™ coupler provides an air and water tight seal. In cases where the duct is undersized or oval shaped, the optional o-ring seals are recommended.


Duct Size
Part Number
Basic Dimensions
1" 117CPL1P 1 1/2" O.D. x 3 3/4" Length
1" 130CPL1P 1 1/2" O.D. x 3 3/4" Length
1 1/4" 148CPL1P 1 7/8" O.D. x 4 1/2" Length
1 1/4" 154CPL1P 1 7/8" O.D. x 4 1/2" Length
1 1/4" 158CPL1P 1 7/8" O.D. x 4 1/2" Length
1 1/4" 166CPL1P 2 1/8" O.D. x 4 1/2" Length
1 1/2" 180CPL1P 2 3/8" O.D. x 4 1/2" Length
1 1/2" 189CPL1P 2 3/8" O.D. x 4 1/2" Length
1 1/2" 190CPL1P 2 3/8" O.D. x 4 1/2" Length
2" 200CPL1P 2 7/8" O.D. x 4 1/2" Length
2" 234CPL1P 2 7/8" O.D. x 4 1/2" Length
40 mm 40MCPL1P 50 mm x 100 mm Length
32 mm 32MCPL1P 38 mm x 95 mm Length

Please call for basic dimensions of Reducers.


*Metric Sizes Available (Call Factory)
